DC MOTOR PID CONTROL

1

This is a remix of PID - DC Motor by chelseacroft.

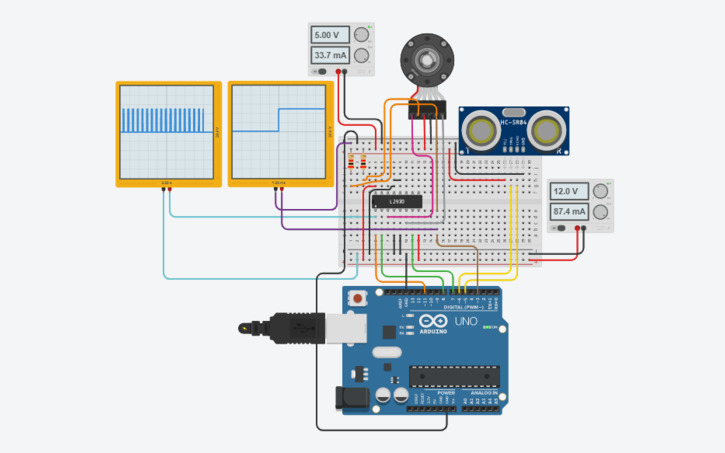

PID speed control of a DC motor Tinkercad model.png
Remixed Circuit by
Prathvi Shetty

Proportional-Integral-Derivative (PID) control is the most common control algorithm used in industry. One of the applications used here is to control the speed of the DC motor. Controlling the speed of a DC motors is very important as any small change can lead to instability of the closed loop system. DC Motor will be interfaced with LabVIEW using an Arduino UNO Microcontroller. The speed of the DC motor will be set by creating a Graphic User Interface (GUI) for PID Controller in LabVIEW.

Show more
Remixed 370 times
Sign up to copy

Design is visible in our gallery and to anyone with the link.

Edited May 08, 2023

Created May 08, 2023

Arduino Uno Micro-controller Driver circuit Speed sensor PID CONTROLLER Ardunio DC Motor Arduino UNO to LabVIEW TINKERCAD lm298 motor driver Tacho-Generator
