Used here: final plate design v2 (less shapes/lines) to make this: http://s24.postimg.org/ihuuw4klx/20141028_165240.jpg. Couldn't have asked for a better fitting hole. MANY thanks dude :)

THANK YOU for making this. I've been looking all over for a single socket for use in making a custom board layout!

I'm really surprised there isn't more folks happy about this. It's a VERY tidy design (my wee boards still going strong, cheers Kevin).

I can't for the life of me figure out how to insert my switch into the design I printed from this. Can anyone help me out?

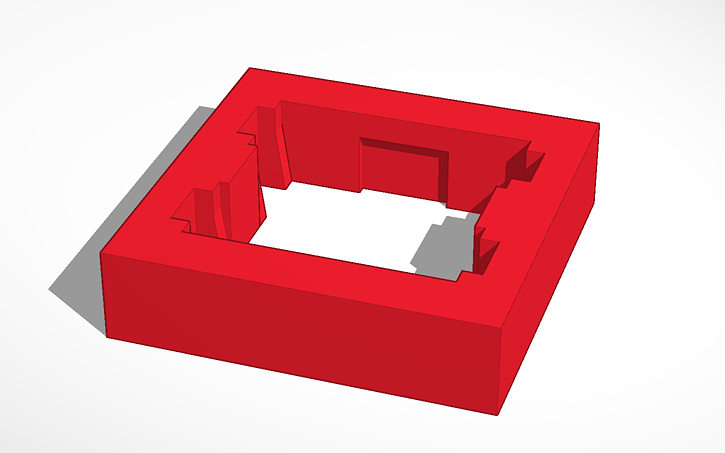

@Grant Looking at the switch slot from the top, it should be oriented so that it looks like a ladybug instead of a ladder segment. The Cherry logo on the switch should be pointed either forwards or backwards relative to the slot. The top of the sketch is oriented correctly, and the switch is planted down from the top with the leads pointed down (stem pointed up). Hope that helps!
